Details

SPECIFICATIONS

Bluetooth: Yes

Body Material: Plastic

Certification: None

Charging: DC5V,.AC,220V/50HZ,110V/60HZ

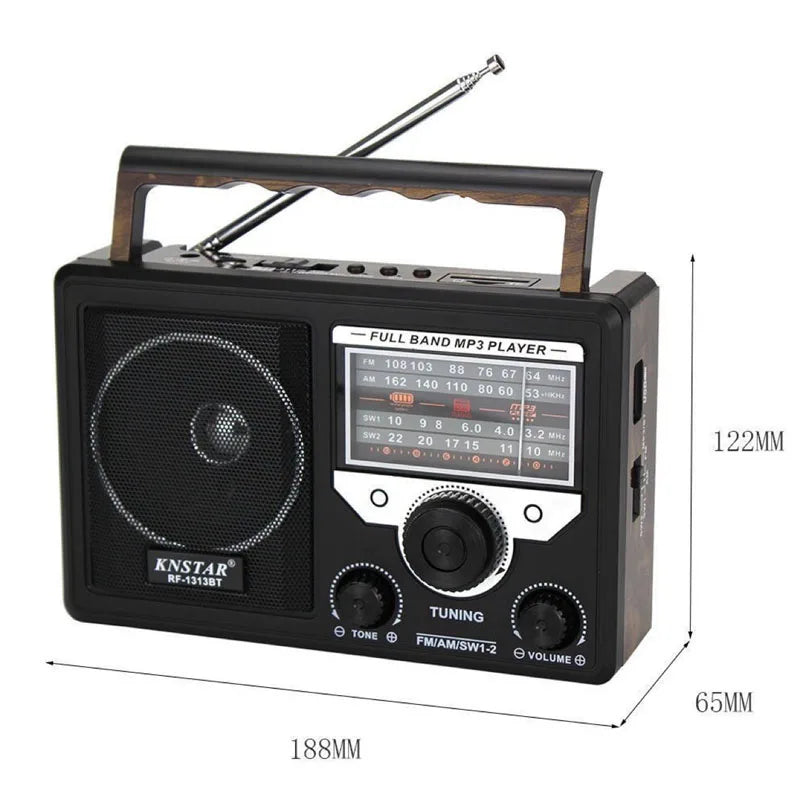

Dimensions (WxHxD): 188*122*65mm

Frequency range: FM:87-108mHZ, AM:520-1620KHZ,SW:3.0-22.0mhz

Function: Built-In Speaker,Bluetooth, USB, TF card, SD card playback

Hign-concerned Chemical: None

Model: Portable Retro FM AM SW Radio

Model Number: JS-9955-Portable Retro FM AM SW Radio

Package: No

Power Supply: Rechargeable Battery Pack

Power supply: Built-in rechargeable battery/2*D dry batteries (not included)

Screen: No

Style: Portable

Type: AM / FM,SW

WIFI: No

semi_Choice: yes



Portable FM AM SW Radio High Sensitivity Word Band Radios Receiver Wireless Bluetooth Speaker Support TF USB SD Card AC/DC Power

1. Bluetooth, USB, TF card, SD card playback

2.FM/AM/S1/S2 four-band radio

3.Built-in 18650,1200mah battery

4.DC 5V adapter port, need to be self-fitted

5.With headphone jack

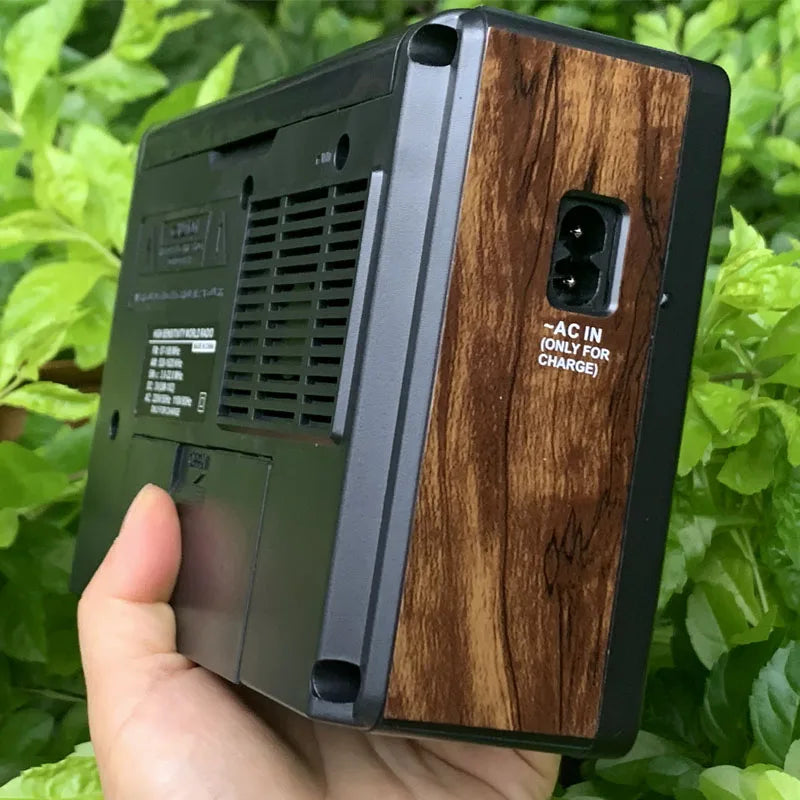

6.AC,220V/50HZ,110V/60HZ plug two round plugs

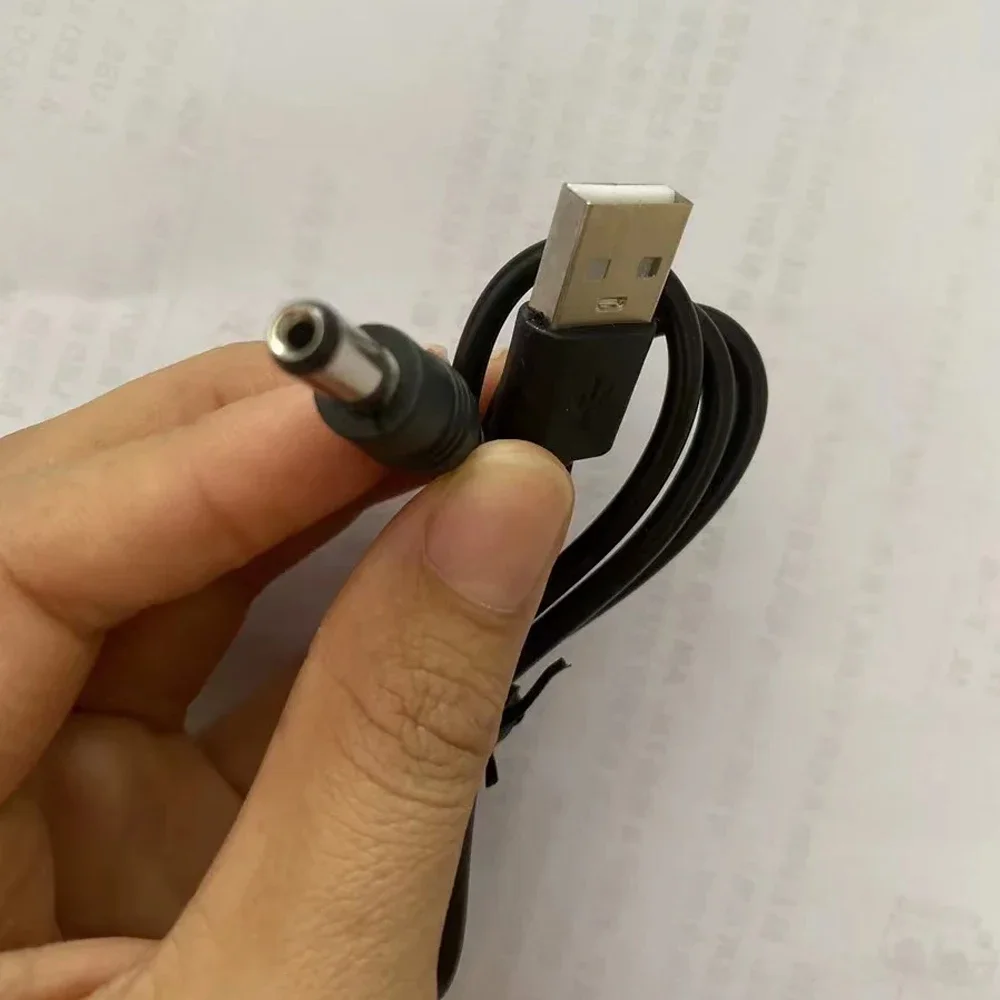

7.Power cord is only for charging the built-in battery.

8.When charging, you need to push the top switch to OFF, please don't use it while charging! ! !

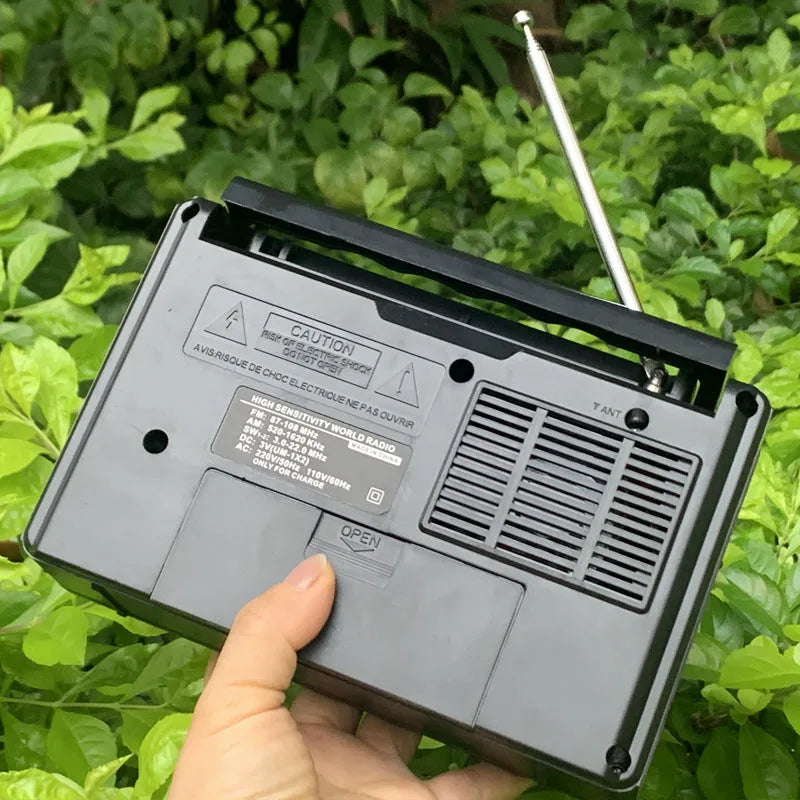

9. Push to the DC center position is loaded with 2 *D large batteries.

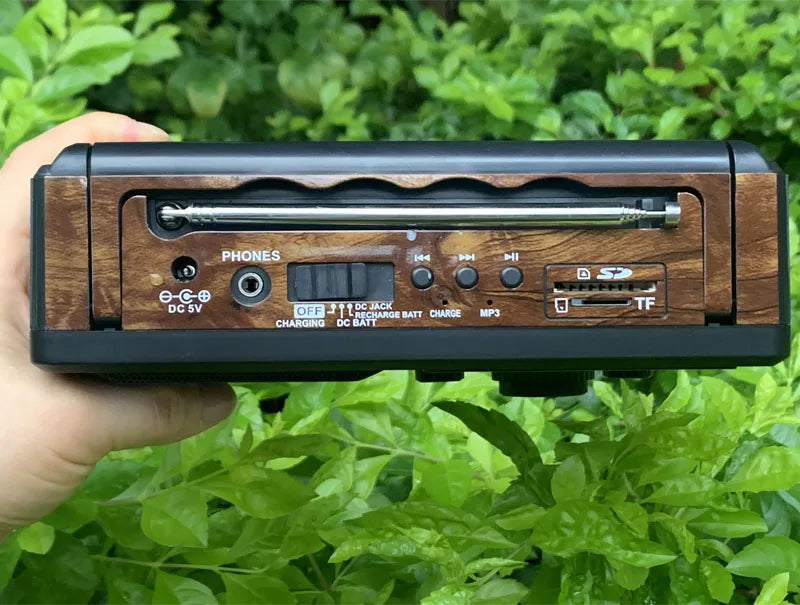

10. When charging the radio, you need to push the top switch to the OFF position, push to the right side of the DC, JACK is to use the built-in rechargeable battery.

11. Charging time of this machine is 4-6 hours.

Operating instructions

1. Two types of power supply.

1) Use2*D (UM1) batteries, push the top switch to the center [DC BATT position, long-term use need to remove the batteries!

2) Use the built-in rechargeable battery, push the top switch to the right side [DC JACK] and turn it on directly, it takes 4-6 hours to charge.

2. Radio operation: the right switch can switch MP3/BT/FM/AM/SW1/SW2 mode, switch to the band you want, TUNING knob tuning, the lower right corner [VOLUME] knob to adjust the volume level. Stretch the antenna to adjust the direction of the radio effect is better!

3. Music playback: switch the right switch to [MP3/BT] position, the top MP3 blue light blinking, open the cell phone Bluetooth, search for "RF-1313" pairing, after pairing to play cell phone music, the radio turns into a Bluetooth speaker in seconds.

a. Insert the TF memory card /U disk/SD card, it can play music automatically.

b.Long press [Play/Pause] for about 2 seconds to switch between Bluetooth, TF memory card, U disk mode.

*Note: Prohibit use while charging! Charging takes 4-6 hours, you need to switch the top switch to [OFF] leftmost position!

You can't put any D battery while charging! Otherwise it will burn out!

Packing list: 1*Radio, 1*Charging cable, 1*Instruction manual (No retail package)!!!
